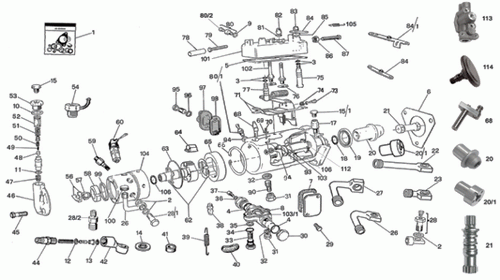

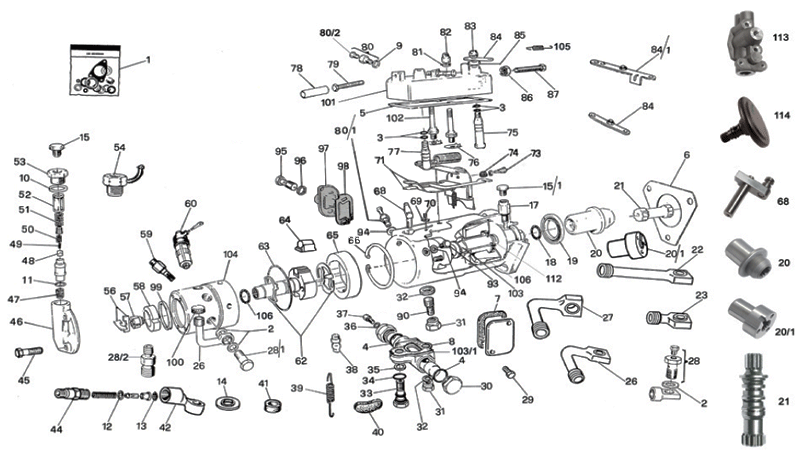

ACCUEIL >> Lucas >> DPA - Decomposition carte




Pics Descriptions Orig.Reference
1 Kit Gasket DPA 7135-70
1 Kit Gasket DPA 9956293=7135-110
1 kit Gasket SOFIM 79071400=7135-113
1 Hydraulic Kit Gasket 80.0414 7135-114
1 Kit Gasket Dps Fiat Trax 7135-122
1 Kit Gasket Dps Ford 7135-123
1 Kit Gasket Dpc P 109-230 9109-013A=9109-210
1 Kit Gasket Stanadyne 80.0998 24.370
1 Kit Gasket Stanadyne 80.0999 24.371
1 Kit Gasket Stanadyne 80.0996 24.372
1 Kit Gasket Stanadyne 80.0997 24.373
1 Kit Gasket Special 7135-70S=T135-110S
2 Washer Steel DPA mm. 2 82.0184 9920107=5936-332C
3 Dpa o-Ring Shaft 81.0134 9917950=5855-30
4 Seal Ring Dpa 81.0161 9917975=5855-30.BD
5 Gasket Cover dpa 9917923=7123-287=7180-451
5 Gasket Cover dps 7174-274A
6 Gasket Flange Ø 50 4607627=7167-496S
6 Gasket Flange Perkins 9007-500
7 Cork Gasket 81.0146 9917925=7123-515A
8 Gasket Advance 83.0106 9917967=7123-937
9 Copper Washer 12x6,8x1 9917965=NW5-15
10 Washer 19x23x1,5 84.0028 9917895=NW5-77W4
11 Piston Washer dpa 9917889=5936/177
12 Washer (for valve) 82.0222 9933308=9007-391
13 Valve Washer 9007-390
14 Oil Seal (dpa hydr.) 81.0153 7022-180C
14 Dpa Seal Housing 5950/34C
15 Protection Plug (Red) 83.0109 7167-61
15/1 Protection Plug(Yellow) 83.0113 7167-60
17 Connection Valve SOFIM 9988815=7167-955
17 Drain Connection OM40/50 NC 9917928=7139-854=7167-379C=9007-988C
17 Connection 7133-31C

Pics Descriptions Orig.Reference
17 connection 7167-379C=9007-988C
18 o-ring(drive shaft) 9935485=5855-30B-B
18 o-ring 5855-30AG
19 oil seal 28,58x38,1x6,35 81.0151 5393-252U
19 oil seal 22,2x34,9x6,35 81.0243 9919920=5393-252R
19 oil seal 20x35x6 dps 7174-127A
19 oil seal dpc( threaded) 9107-406
19 oil seal advance dps ford 7177-38A
19 oil seal advance dps ford transit 7174-856
20 drive hub (normal type) 7123-269
20 drive hub with coupling 7139-41
20/1 drive hub (big) normal type 7123-549
20/1 drive hub(big) with coupling 7123-980
21 drive hub 7139-52B
21 drive hub 7139-185/01
21 toothed joint 7123-592B=7123-592
21 toothed joint 7123-592A
22 connection Ø 8 (long type) 9917904=7123-503
22 connection Ø 10,5 (long type) 7123-503A
22 connection (bended) Ø 8 201138
22 connection(long type) 7139-354
22 connection(long type) Ø 10,5x71 fiat 7139-354B
23 connection(short type) 7139-499
26 connection (angle type) 7123-670
26 connection (long type) 7123-670A
28 connection(frontal type) 7139-480
28 connection with drain SOFIM 9986300=7139-560A
28 screw 7123-339A
28 connection 9986293=7123-339
28 connection 7123-339D=7139-177A
28 connection 7123-501
29 screw 9917926=5334-274
30 plug 9927705=7123-473J

Pics Descriptions Orig.Reference
30 plug 7123-473B
31 plug 9917969=5330-362
32 bonded seal Ø 14 iron/rubber 9922900=7022-180D
32 bonded seal Ø 22 iron/rubber 7022-180L
33 stud OM40 9927709=7123-855A
33/1 manual lock trax fiat 9919569=7139-2C
33/2 stud perkins ford 7123-261/S
34 spacer 9922915=7139-821=5855-30FR
35 spacer 9917981=5936-91
36 copper washer 8,7x5x0,8 9956518=5936-355C
37 advance screw 9956517=5334-291
38 cam screw dpa 9917971=7123-975
38 spark advance olive 7123-947
39 advance spring SOFIM 9929579
40 rubber cap dpa 7123-691
41 o-ring 8x4x6 small
41 o-ring10,5x6,5x6 medium 7167-746
41 o-ring 10,5x7,5x6 big 7167-746A
42 connection SOFIM 9007-687C
44 connection valve SOFIM 9986328=9007-688C
45 plate screw 9920951=5334-315
46 end plate 7135-181
46 end plate 7135-180
46 end plate fiat 40 NC ( long) 9927711=7139-344B=7135-233
47 spring 9917886=7123-439
48 dpa piston 9917887=7123-15G
49 spring 9956301=7123-33E
50 spring 9956297=7123-33F
51 spring 9917893=7123-551
52 filter dpa 9917890=7123-620
53 connection dpa 9917894=7133-37
53 inlet union 7123-554
54 solenoid modification (stop)

Pics Descriptions Orig.Reference
56 blades set dpa 9917897=7123-388
57 right-hand rotor 9917896=7123-018F=D
57 left-hand rotor 9917987=7123-18A
58 liner 7139-115
58 liner 81. 0323 9917898=7139-223
58 liner SOFIM 9929583=7139-540
58 liner 7139-541
58 liner 16.753 roosa master
58 dpc liner 9103-009AN
59 dpa banjo bolt 7180-358 EX 39-752
59/1 dps union 7174-842E
60 solenoid 12V 9986316=7167-620A
60 dpc solenoid 9009-049
60 dps solenoid 24V 7180-49A
60 solenoid dps 12V 9959327=7167-620D
60 solenoid dps 24V 7180-49D
62 plate adj. top 9956300=7135-73
62 plate adj. top 7135-73A
62 plate adj. top 7135-73B
63 o-ring dpa head 9917903=5855-30BC
63 o-ring dpc/dpa 9107-403A
64 set roller (2 pieces) 9986280=7135-72
65 camme ring 7139-234C 7123-308C
65 camme ring 7123-308E
65 camme ring fiat 2 cyl 7123-308F(former 7139-713F)
65 camme ring fiat 4 cyl 9917992=7123-308N
65 camme ring 7123/308S
65 camme ring 7123-309A
65 camme ring 7123-309C
65 camme ring 7123-309AA
65 camme ring 7123-309D
65 camme ring 7123-309E
65 camme ring fiat 6 cyl/brasil 7123-309H

Pics Descriptions Orig.Reference
65 camme ring 7123-309M
65 camme ring 7123-309N
65 camme ring 7123-309R
65 camme ring 7123-309Q
65 camme ring 9917915=7139-100P
65 camme ring 9918200=7139-687M
65 camme ring 7139-713D
65 camme ring 7139-763E=7123-309Q
65 camme ring 9920106=7139-860P
65 camme ring=7139-844M 9927713=7139-844E
65 camme ring 9988673=7139-844M
65 camme ring 3+6 Cyl. 7139-940D
65 camme ring 7139-940M
65 camme ring 7139-940Q
65 camme ring 7139-940E
65 camme ring FIAT 4 Cyl. 780 7139-949Q
65 camme ring 7139-949M
65 camme ring 3+6 Cyl. 9922901=7139-974D=756D
65 camme ring 3+6 Cyl. 7167-287
65 camme ring 3+6 Cyl. 7167-287A
65 camme ring 9936129=7167-594C
65 camme ring 9961152=7174-67
65 camme ring 9961807=7174-67W
66 seeger 997916=5950-64A
68 dpa metering valve 7123-490
68 metering valve 7123-490B
68 metering valve 7123-781=7123-781F
68 metering valve 7123-781A
68 metering valve 7123-781B
68 metering valve 7123-781C
68 metering valve 7123-781D
68 metering valve 7123-835B=7123-835F
68 metering valve 7123-835C
68 metering valve 7123-930

Pics Descriptions Orig.Reference
68 metering valve 7123-930B
68 metering valve 7139-269
68 metering valve 7139-269A
68 metering valve 9918203=7139-559
68 metering valve 9918206=7139-559A
68 metering valve 9917946=7139-559D
68 metering valve 9917947=7139-559E
68 metering valve 7139-559B
68 metering valve 7139-559C
68 metering valve 7123-490C
68 metering valve 7123-490D
68 metering valve 7123-490E
68 metering valve 7123-490F
68 metering valve sofim 9986333=7167-57AJP
68 metering valve 9003-027C
68 metering valve dpc 9100-125C
68 metering valve dpc 9100-228
68 metering valve sofim 9986332=7167-57AJN
68 metering valve (threaded) dps 7174-980A
68 metering valve trax dps 9961153=7182-620A
68 metering valve dps 7182-621J
68 metering valve dps 7182-620C
68 metering valve dps 7182-620G
68 metering valve dps 7182-621A
68 metering valve dps 7182-621C
68 metering valve 7182-621G=9971559
68 metering valve 11563
68 metering valve sofim 9986331=7167-57AJM
69 washer locking 9922905=7167-331
70 screw 9917934=5334-277
71 dpa plate (pair) 3pcs 9988591=7135-73A
71 dpa plate pair 9917913=7135-76AC=7135-76
73 spring guide 9917958=7123-93

Pics Descriptions Orig.Reference
74 spring 9917957=7123-92A
75 stop shaft 9917949=7123-726
76 washer locking 82.0179 9917932=7123-600
77 accelerator shaft 7123-770D
77 accelerator shaft (short) 9917954=7123-770
77 accelerator shaft (long) 7123-770A
77 accelerator shaft dps 7123-828E
77 accelerator shaft dpc 7139-791A
78 alu sleeve dpa 4617425=7139-184
78 seal Ø 8 7174-929B
78 seal 7139-795
78/1 seal cap (short) 9986265=7139-60A
79 register screw 9917960=5334-267A
80 screw vent ass.(small) 9917964=7123-351B
80/1 screw vent ass. 9917908=7123-352B
80/2 screw vent ass. 5334/332
81 fibre washer 9,5x5x2 9917938=5339-970
82 nut cap 9917937=5330-344=7123-108
83 self locking nut dpa 9917953=5330-406=NU9-8Y1
84 lever stop dpa Ø 6,5 9917951=7123-725A
84 lever stop dpa Ø 5 9927706=7123-725B
84/1 accelerator lever 9917955=7123-724D
84/1 accelerator lever 7123-724
85 dust cap dpa 9917952=7123-728A
90 stud 5335-694A
90 stud 9923014=5335-694
93 cap 5334-280
94 copper washer NW5-18W4
95 drilled bolt Ø 13
96 copper washer Ø13x1,5 5339-966
96 copper washerØ13x2,00 NW5-34 W4
97 cover plate 7180-57A=9045-296
98 jointing dpa 9045-137

Pics Descriptions Orig.Reference
98 jointing sofim dpa 7139-740
99 seal transfer pump 9917899=7139-43
100 dust cap 7139-979
101 cover fiat 9917959=7123-888
101 cover 7123-888A
101 cover fiat 9929958=7123-888D
101 cover 7123-785A
101 cover sofim 9988814=7123-785N
102 dpa stud 9917931=7123-527
103 coupling 9926919=7167-89A
103/1 advance body dpa 7139-16
103/1 advance body dpa 7139-16A
104 H. HEAD & ROTOR PERKINS=VM 7123-340G
104 H. HEAD & ROTOR PERKINS 7123-340
104 H. HEAD & ROTOR PERKINS 7123-340K
104 H. HEAD & ROTOR DAVID BROWN 7123-340L
104 H. HEAD & ROTOR PERKINS 7123-340R
104 H. HEAD & ROTOR PERKINS=SAME 7123-340S
104 H. HEAD & ROTOR PERKINS=SAME 7123-340U=9003-203V
104 H. HEAD & ROTOR PERKINS=SAME 7123-340W
104 H. HEAD & ROTOR 7123-340M
104 H. HEAD & ROTOR 7123-345N
104 H. HEAD & ROTOR 7123-340Q
104 H. HEAD & ROTOR PERKINS 7123-345M
104 H. HEAD & ROTOR 7123-345S
104 H. HEAD & ROTOR PERKINS 7123-345T
104 H. HEAD & ROTOR SAME 6 Cyl. 7123-345W
104 H. HEAD & ROTOR JOHN DEERE 7123-345U
104 H. HEAD & ROTOR MASSEY FERGUSON Turbo 7123-345X
104 H. HEAD & ROTOR 7123-359J
104 H. HEAD & ROTOR PERKINS 7123-909T
104 H. HEAD & ROTOR 7123-909U
104 H. HEAD & ROTOR PERKINS 7123-909V

Pics Descriptions Orig.Reference
104 H. HEAD & ROTOR FIAT 4 Cyl. 7139-130R
104 H. HEAD & ROTOR FIAT 4 Cyl. 7139-130T
104 H. HEAD & ROTOR PERKINS 7139-235S
104 H. HEAD & ROTOR PERKINS 6 Cyl. 7139-360U
104 H. HEAD & ROTOR FORD 5000/6000 HOLE UP 7139-422W
104 H. HEAD & ROTOR FORD 3000/4500 7139-709W
104 H. HEAD & ROTOR FIAT 7139-764T
104 H. HEAD & ROTOR PERKINS 7139-764S
104 H. HEAD & ROTOR FIAT=OM 40,50NC 7167-334U
104 H. HEAD & ROTOR FIAT 300 2 Cyl. 7167-349S
104 H. HEAD & ROTOR PERKINS 7167-539K
104 H. HEAD & ROTOR ROTO DIESEL 9002-232L=9002-2
104 H. HEAD & ROTOR FIAT 4 Cyl.with solenoid 7167-804R
104 H. HEAD & ROTOR FIAT 3 Cyl.with solenoid 7167-807T
104 H. HEAD & ROTOR DPS FIAT 6 Cyl. 7183-182L
104 H. HEAD & ROTOR 7180-553J
104 H. HEAD & ROTOR 7180-795S EX 559S
104 H. HEAD & ROTOR 7180-574T
104 H. HEAD & ROTOR 7180-19R EX 668R
104 H. HEAD & ROTOR 7180-19U EX 668U
104 H. HEAD & ROTOR 7180-19W EX 668W
104 H. HEAD & ROTOR 7180-19S EX 668S
104 H. HEAD & ROTOR 7180-19G EX 668G
104 H. HEAD & ROTOR 7180-586F
104 H. HEAD & ROTOR 7180-650S
104 H. HEAD & ROTOR 7180-578M EX 7123-359M
104 H. HEAD & ROTOR 4 Cyl.with solenoid 7180-681R
104 H. HEAD & ROTOR FIAT 1000 with solenoid 6 Cyl.DPA
105 stop SPRING mm.8
105 accelerator RETURN spring mm.13
106 washer rotor plug 5339-808/5339-964
112 drive shaft mm.28 7180-136A EX 7139-644D
112 drive shaft mm.28,5 7180-136B EX 7139-644E

Pics Descriptions Orig.Reference
113 cont/cover assy 7180-873A EX 7135-78D
114 damper 7139-159A
114 damper perkins 7139-159B
115 washer rotor plug 5339-808/5339-964
116 rubber advance 5950-54C


English China Español Русско Portuguese العربية Nederlands Français Deutsch Ελληνικά Italiano 日本語
闽ICP备06000674号
E-mail:[email protected] Fax:+86-594-3600560
CopyRight©2003 ChinahanJi Power Co.,Ltd All rights reserved

Chinahanji Power Co., Ltd est un fabricant spécialisé dans le carburant diesel des pièces de moteur.Nos principaux produits sont pompe VEpièces d'injection diesel, diesel buses, système d'injection de carburant diesel et de l'interdépendance produits (tels que chef Rotor, pompe d'alimentation, Cam Disque, arbre entra nant, électrovanne, etc), Diesel piston(A, AS, P, PS7100, P8500, MW type, etc ), Diesel glip (Dn, DNOPDN, S, SN, PN, etc.), Valve de livraison , Cat type de Crayon glib, etc.
