HOME >> Standard Injector >> Test Injectors Pump





 Standard Injector  Standard Oil Injection Test Injectors Pump  Calibrate Test Bed CRS200A

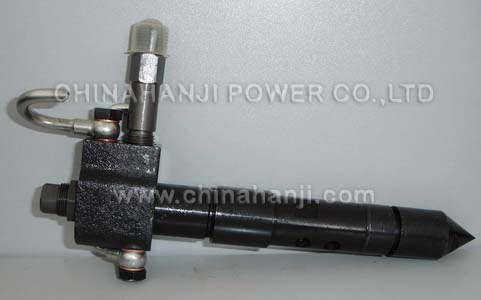

Test Injectors To Calibrate Diesel Fuel Injection Pumps

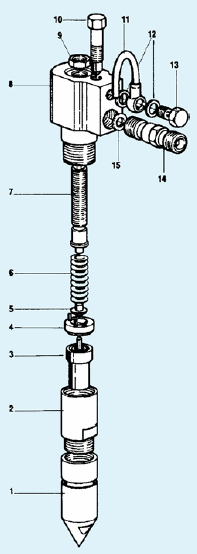

TYPE Ⅰ
PART NO. PRESSURE ORIFICE PLATE
84.05.22 130 BAR -
REF. PART NO. SPARE PARTS
1 84.70.003 Spray damper
2 84.60.012 Nut retainer
3 84.40.992 Needle valve
4 84.45.992 Spacer
5 84.15.001 Lower spring guide
6 84.30.002 Spring
7 84.13.001 Screw adjusting pressure
8 84.10.004 Body holder
9 84.14.001 Locknut pressure adjusting
10 84.12.001 Screw bleeder
11 84.99.001 Tube
12 84.18.001 Gasket
13 84.17.001 Screw
14 84.20.002 Fuel inlet
15 84.19.001 Gasket

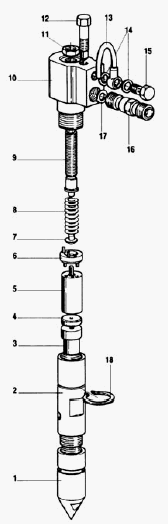

TYPE Ⅱ
PART NO. PRESSURE ORIFICE PLATE
84.05.023 172 BAR diam.0,4mm
84.05.025 172 BAR diam.0,5mm
84.05.027 250 BAR diam.0,5mm
REF. PART NO. SPARE PARTS
1 84.70.003 Spray damper
2 84.60.010 Nut retainer
3 84.80.000 Adapter
4 84.50.V Orifice plate
5 84.40.991 Needle valve
6 84.45.991 Spacer
7 84.15.001 Lower spring guide
8 84.30.002 Spring
9 84.13.001 Screw adjusting pressure
10 84.10.004 Body holder
11 84.14.001 Locknut pressure adjusting
12 84.12.001 Screw bleeder
13 84.99.001 Tube
14 84.18.001 Gasket
15 84.17.001 Screw
16 84.20.002 Fuel inlet
17 84.19.001 Gasket
18 84.65.001 Retaining ring

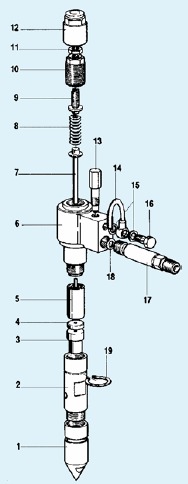

TYPE Ⅲ
PART NO. PRESSURE ORIFICE PLATE
84.05.015 207 BAR diam.0,4mm
84.05.016 207 BAR diam.0,5mm
84.05.017 207 BAR diam.0,6mm
84.05.018 207 BAR diam.0,7mm
84.05.019 207 BAR diam.0,8mm
84.05.020 172 BAR diam.0,6mm
REF. PART NO. SPARE PARTS
1 84.70.003 Spray damper
2 84.60.003 Nut retainer
3 84.80.000 Adapter
4 84.50.V Orifice plate
5 84.40.999 Needle valve
6 84.10.003 Body holder
7 84.15.002 Spindle
8 84.30.003 Spring
9 84.13.002 Seat upper spring
10 84.16.001 Spring retaining cup
11 84.14.002 Locknut pressure adjusting
12 84.11.001 Cover nut
13 84.12.002 Screw bleeder
14 84.99.001 Tube
15 84.18.001 Gasket
16 84.17.001 Screw
17 84.20.001 Fuel inlet
18 84.19.001 Gasket
19 84.65.001 Retaining ring

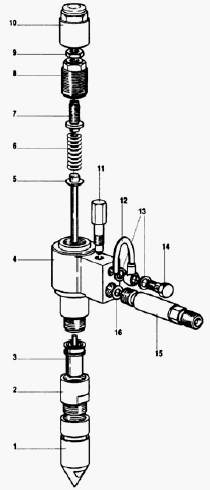

TYPE Ⅳ
PART NO. PRESSURE ORIFICE PLATE
84.05.000 147 BAR -
84.05.009 172 BAR -
REF. PART NO. SPARE PARTS
1 84.70.003 Spray damper
2 84.60.014 Nut retainer
3 84.40.014 Needle valve
4 84.10.003 Body holder
5 84.15.002 Spindle
6 84.30.003 Spring
7 84.13.002 Seat upper spring
8 84.16.001 Spring retaining cup
9 84.14.002 Locknut pressure adjusting
10 84.11.001 Cover nut
11 84.12.002 Screw bleeder
12 84.99.001 Tube
13 84.18.001 Gasket
14 84.17.001 Screw
15 84.20.001 Fuel inlet
16 84.19.001 Gasket

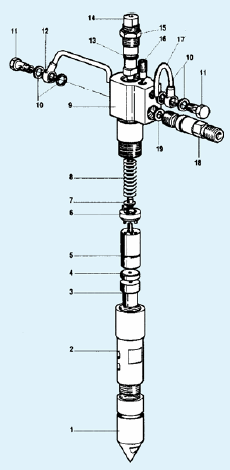

TYPE Ⅴ
PART NO. PRESSURE ORIFICE PLATE
84.05.101 207 BAR diam.0,6mm
84.05.102 250 BAR diam.0,6mm
84.05.103 207 BAR diam.0,7mm
84.05.104 250 BAR diam.0,7mm
84.05.105 207 BAR diam.0,8mm
84.05.106 250 BAR diam.0,8mm
84.05.109 207 BAR diam.0,5mm
84.05.110 250 BAR diam.0,5mm
REF. PART NO. SPARE PARTS
1 84.70.003 Spray damper
2 84.60.005 Nut retainer
3 84.80.000 Adapter
4 84.50.V Orifice plate
5 84.40.990 Needle valve
6 84.45.990 Spacer
7 84.15.003 Lower spring guide
8 84.30.004 Spring
9 84.10.005 Body holder
10 84.18.001 Gasket
11 84.17.001 Screw
12 84.99.002 Leak off tube
13 84.21.001 O-ring
14 84.13.003 Screw adjusting pressure
15 84.14.003 Locknut pressure adjusting
16 84.12.003 Screw bleeder
17 84.99.001 Tube
18 84.20.003 Fuel inlet
19 84.19.001 Gasket

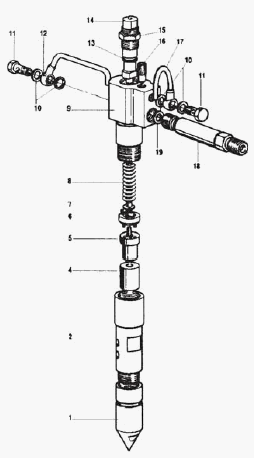

TYPE Ⅵ
PART NO. PRESSURE ORIFICE PLATE
84.05.111 147 BAR -
84.05.112 172 BAR -
84.05.113 207 BAR -
REF. PART NO. SPARE PARTS
1 84.70.003 Spray damper
2 84.60.005 Nut retainer
3 84.80.210 Adapter
4 84.40.988 Needle valve
5 84.45.990 Spacer
6 84.15.003 Lower spring guide
7 84.30.004 Spring
8 84.10.005 Body holder
9 84.18.001 Gasket
10 84.17.001 Screw
11 84.99.002 Leak off tube
12 84.21.001 O-ring
13 84.13.003 Screw adjusting pressure
14 84.14.003 Locknut pressure adjusting
15 84.12.003 Screw bleeder
16 84.99.001 Tube
17 84.20.005 Fuel inlet
18 84.19.001 Gasket

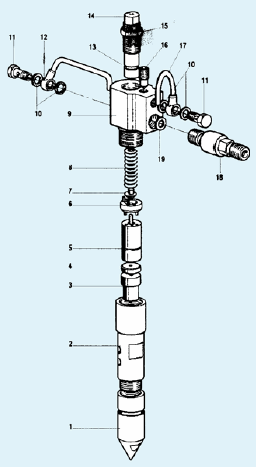

TYPE Ⅶ
PART NO. PRESSURE ORIFICE PLATE
84.05.114 207 BAR diam.0,4mm
84.05.115 250 BAR diam.0,4mm
84.05.116 207 BAR diam.0,5mm
84.05.117 250 BAR diam.0,5mm
REF. PART NO. SPARE PARTS
1 84.70.003 Spray damper
2 84.60.005 Nut retainer
3 84.80.000 Adapter
4 84.50.V Orifice plate
5 84.40.987 Needle valve
6 84.45.987 Spacer
7 84.15.004 Lower spring guide
8 84.30.005 Spring
9 84.10.006 Body holder
10 84.18.001 Gasket
11 84.17.001 Screw
12 84.99.002 Leak off tube
13 84.21.001 O-ring
14 84.13.004 Screw adjusting pressure
15 84.14.003 Locknut pressure adjusting
16 84.12.003 Screw bleeder
17 84.99.001 Tube
18 84.20.004 Fuel inlet
19 84.19.001 Gasket
